For this weeks craft segment I decided to go with a steel spreader bar:

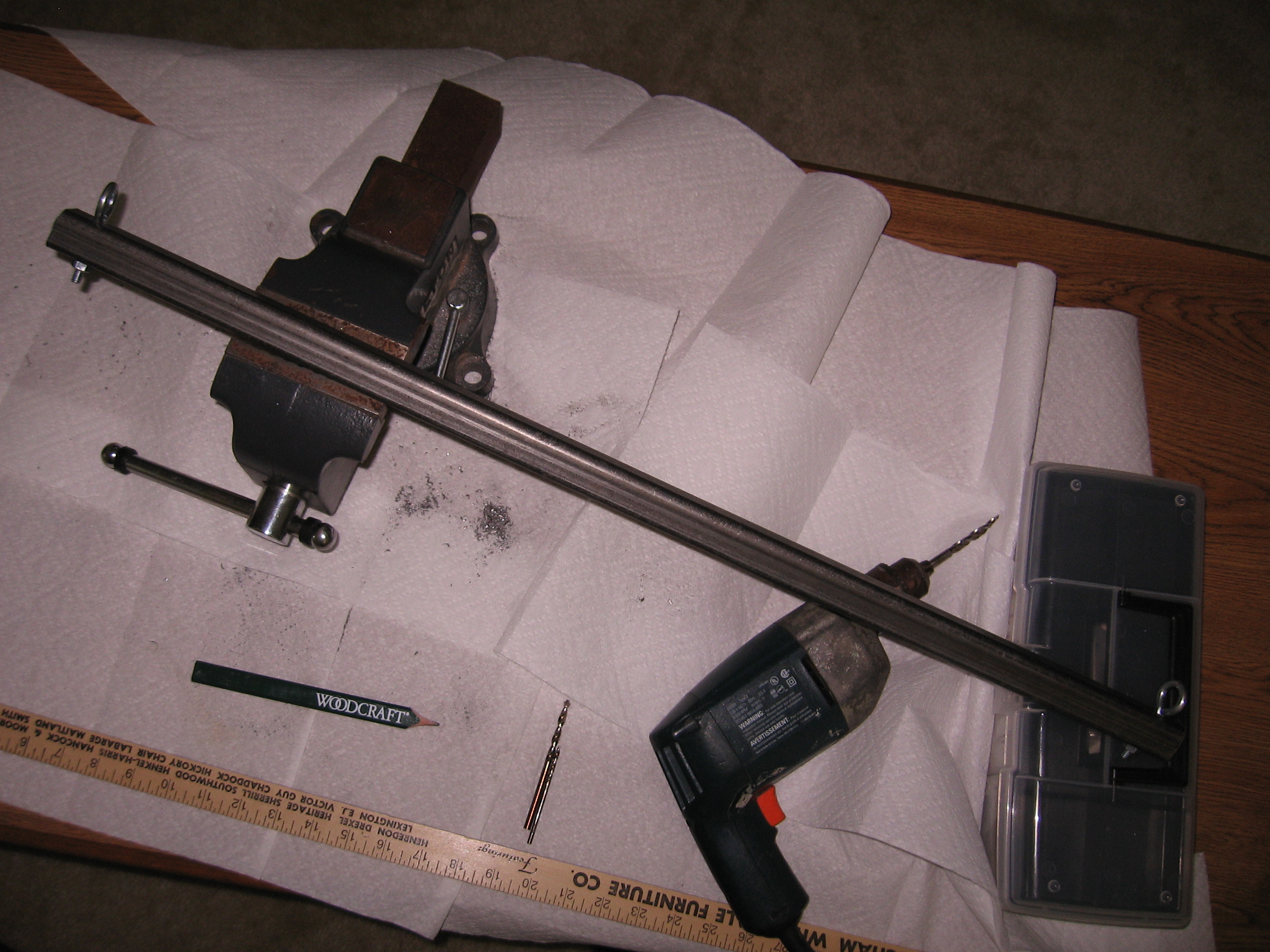

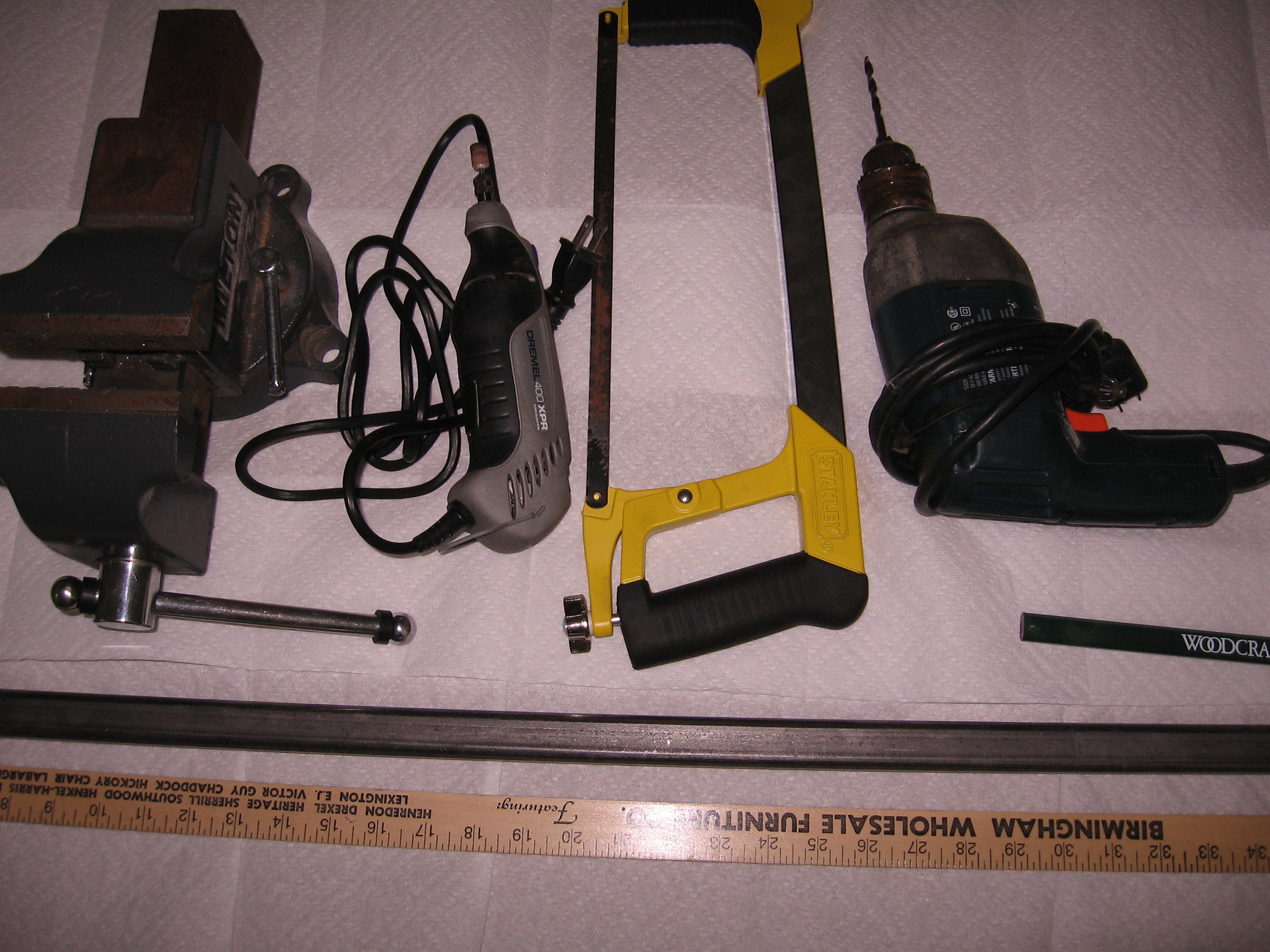

Tools and supplies used:

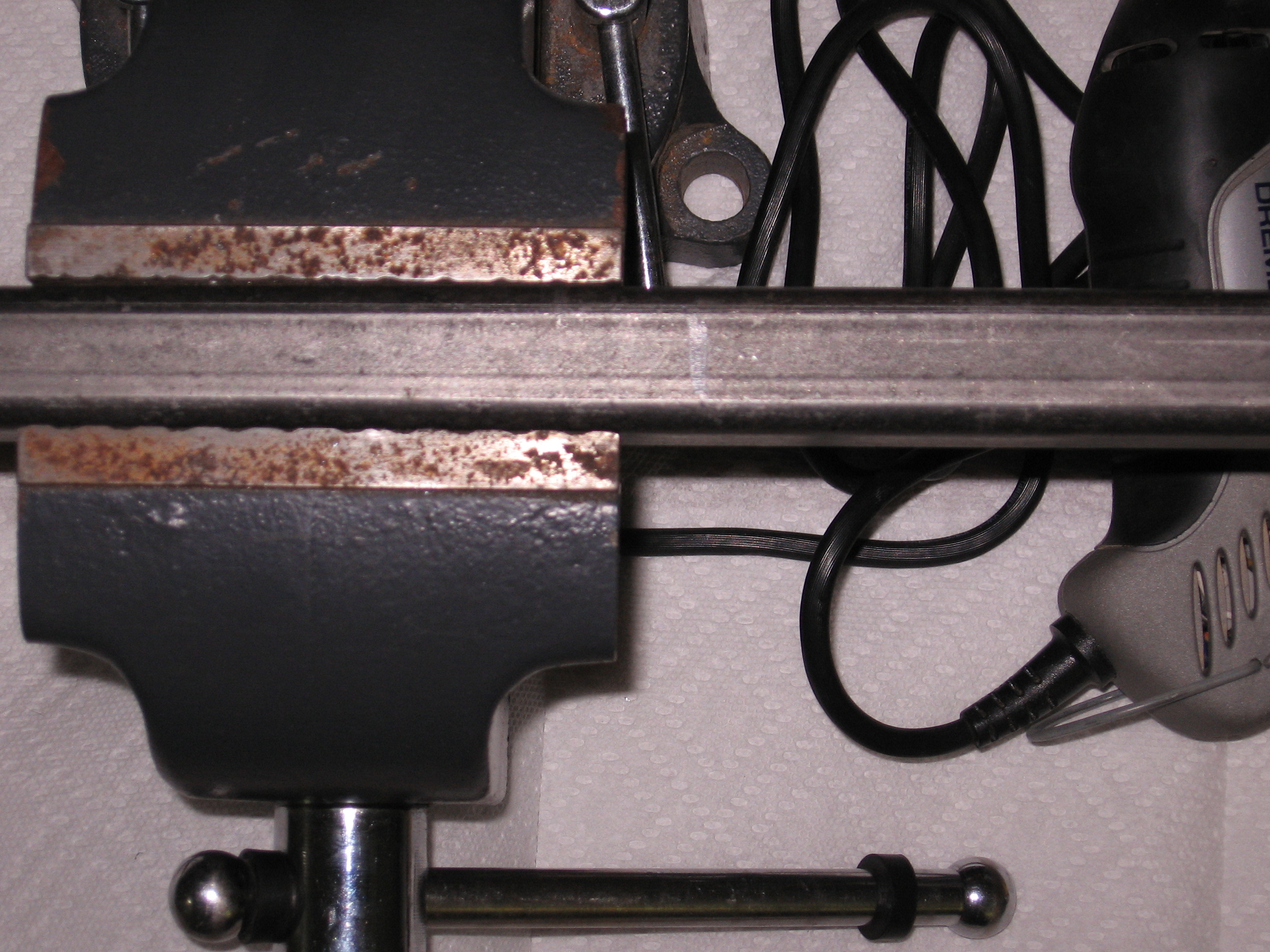

1″ square steel tubing with 1/8″ walls, clamped in place:

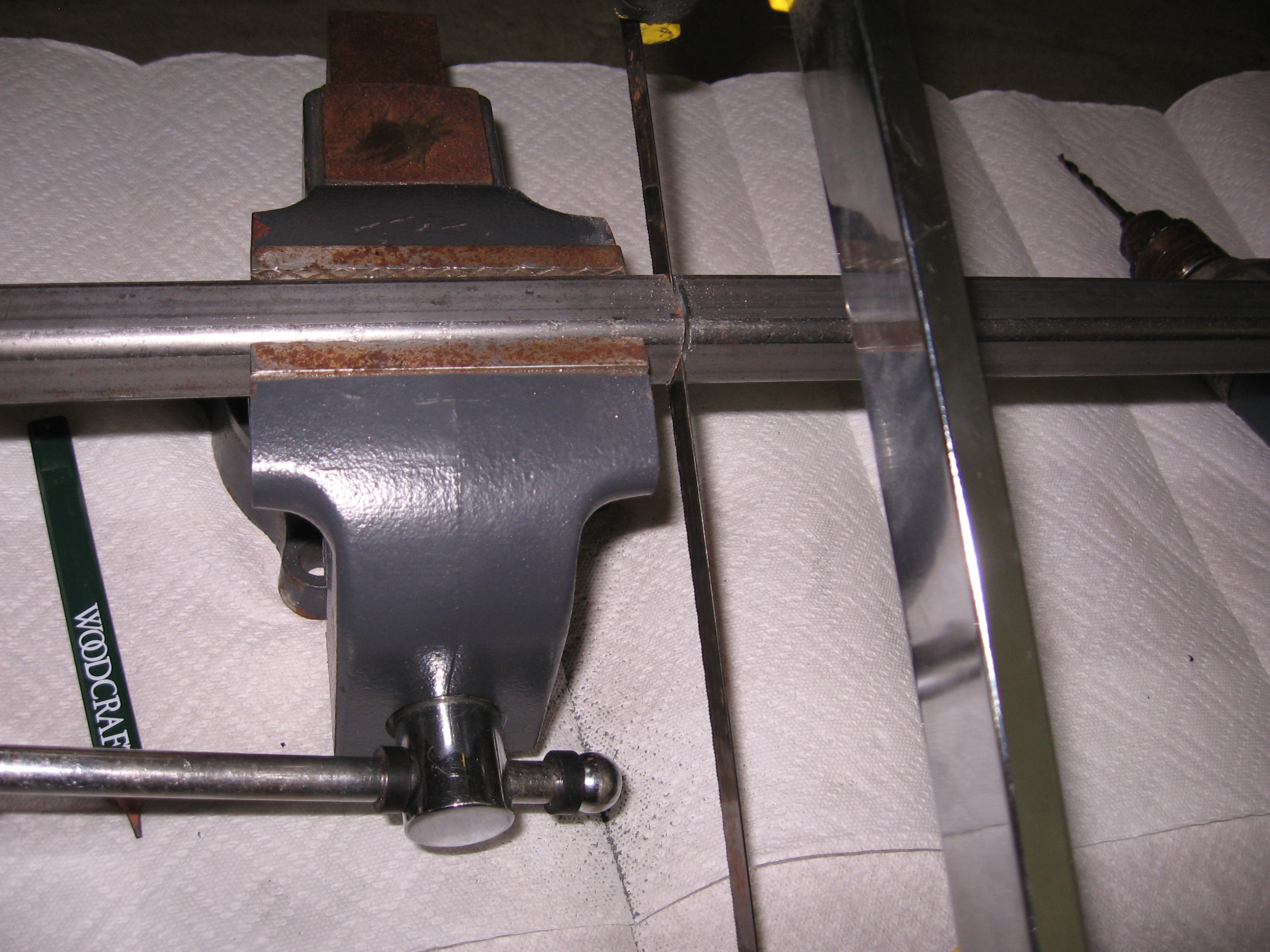

Cut to 30″ with a hacksaw:

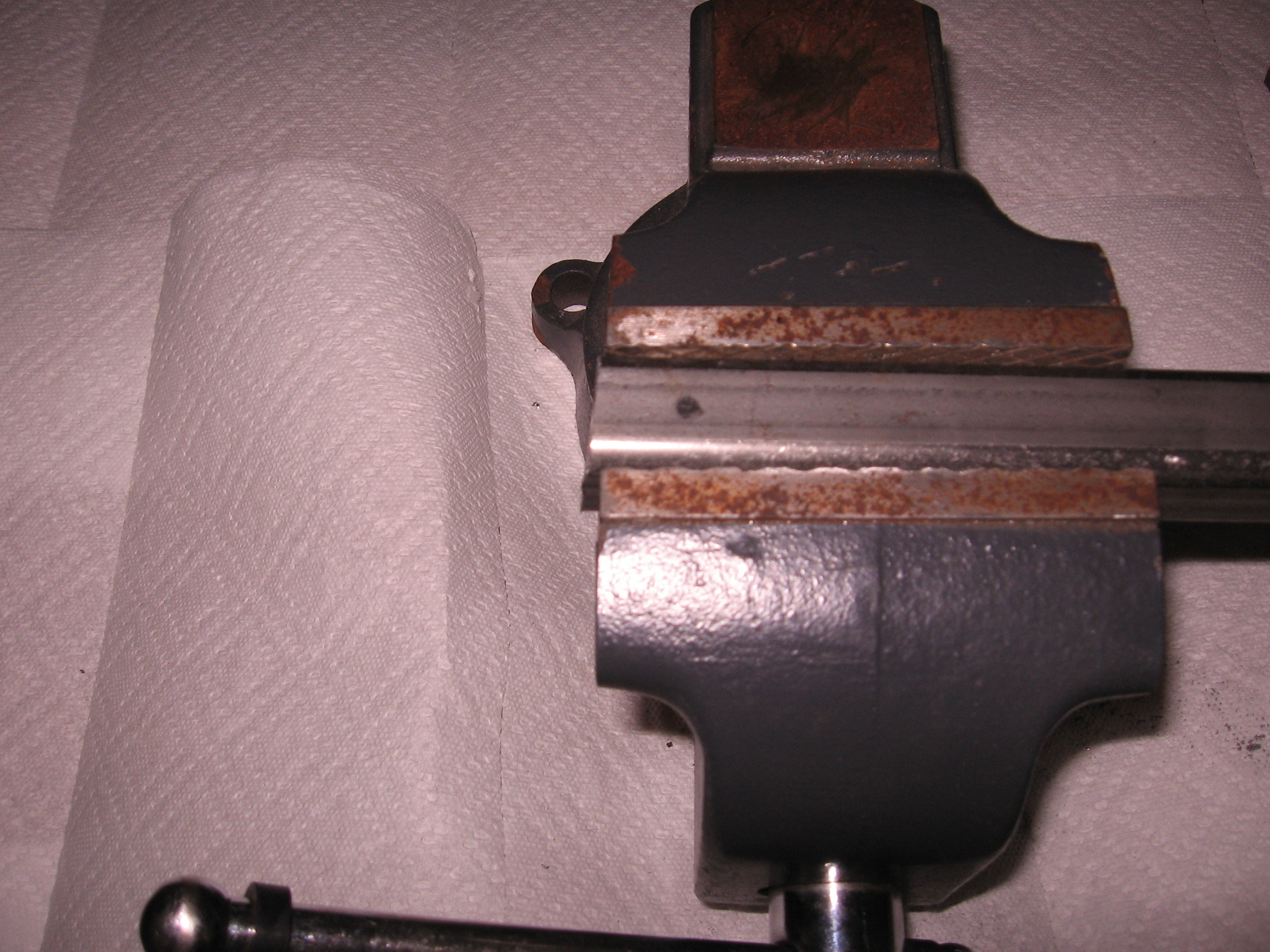

End marked for drilling:

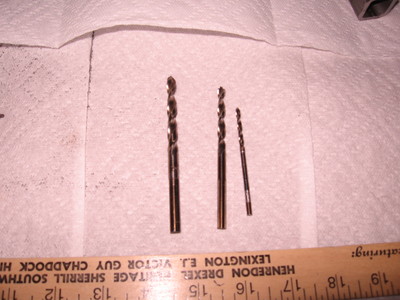

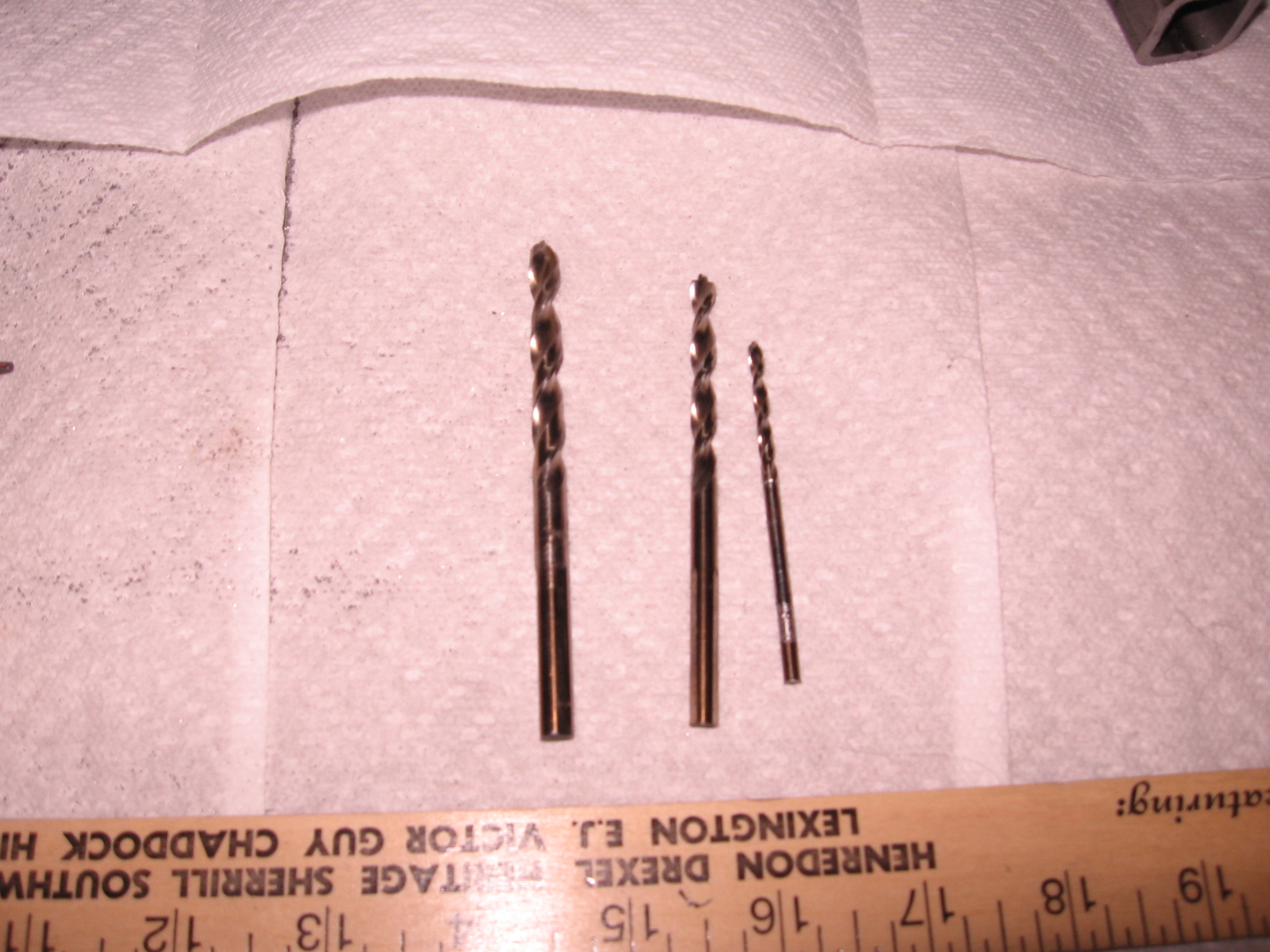

Progression of drill bit sizes used for easy drilling:

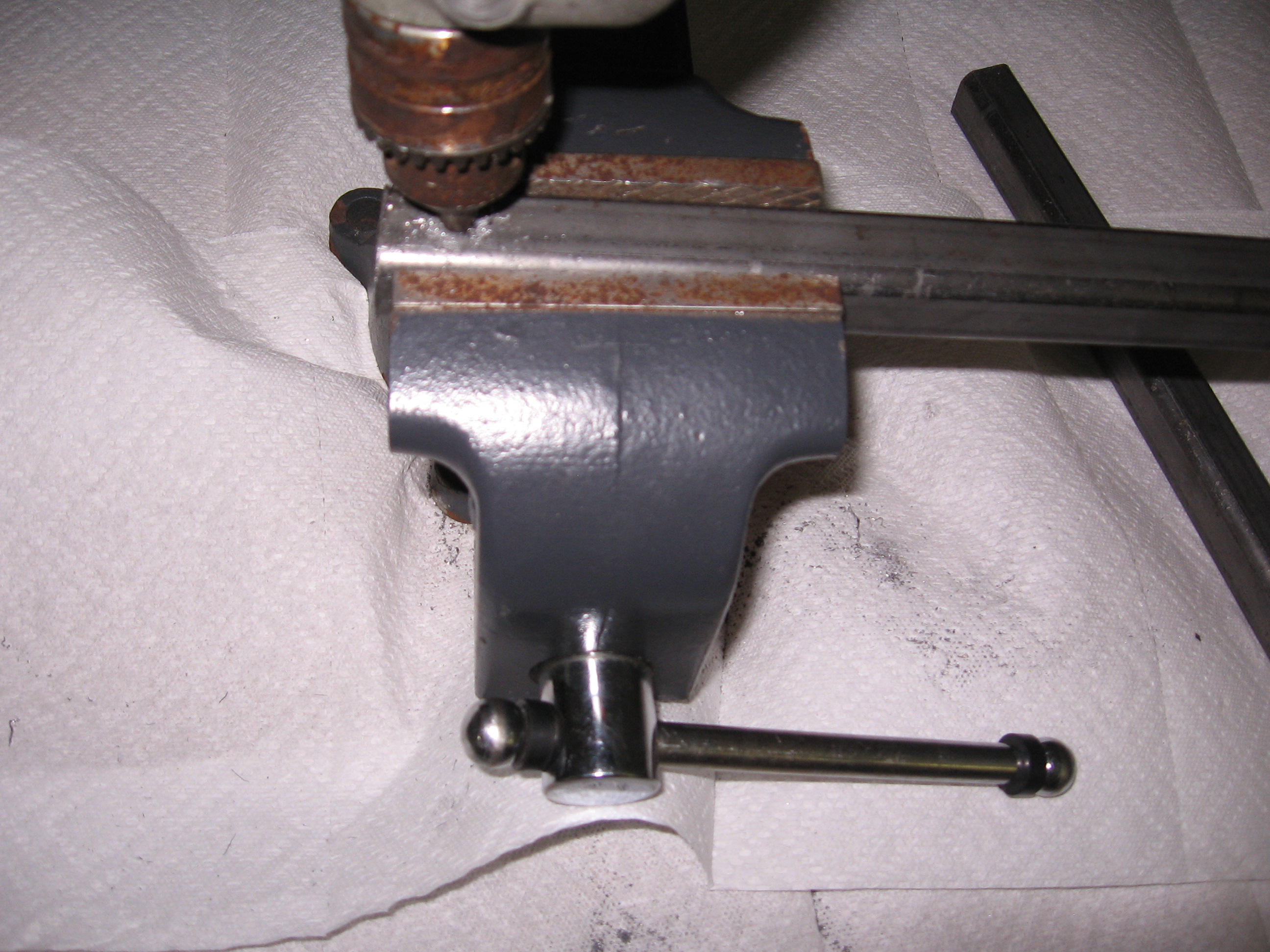

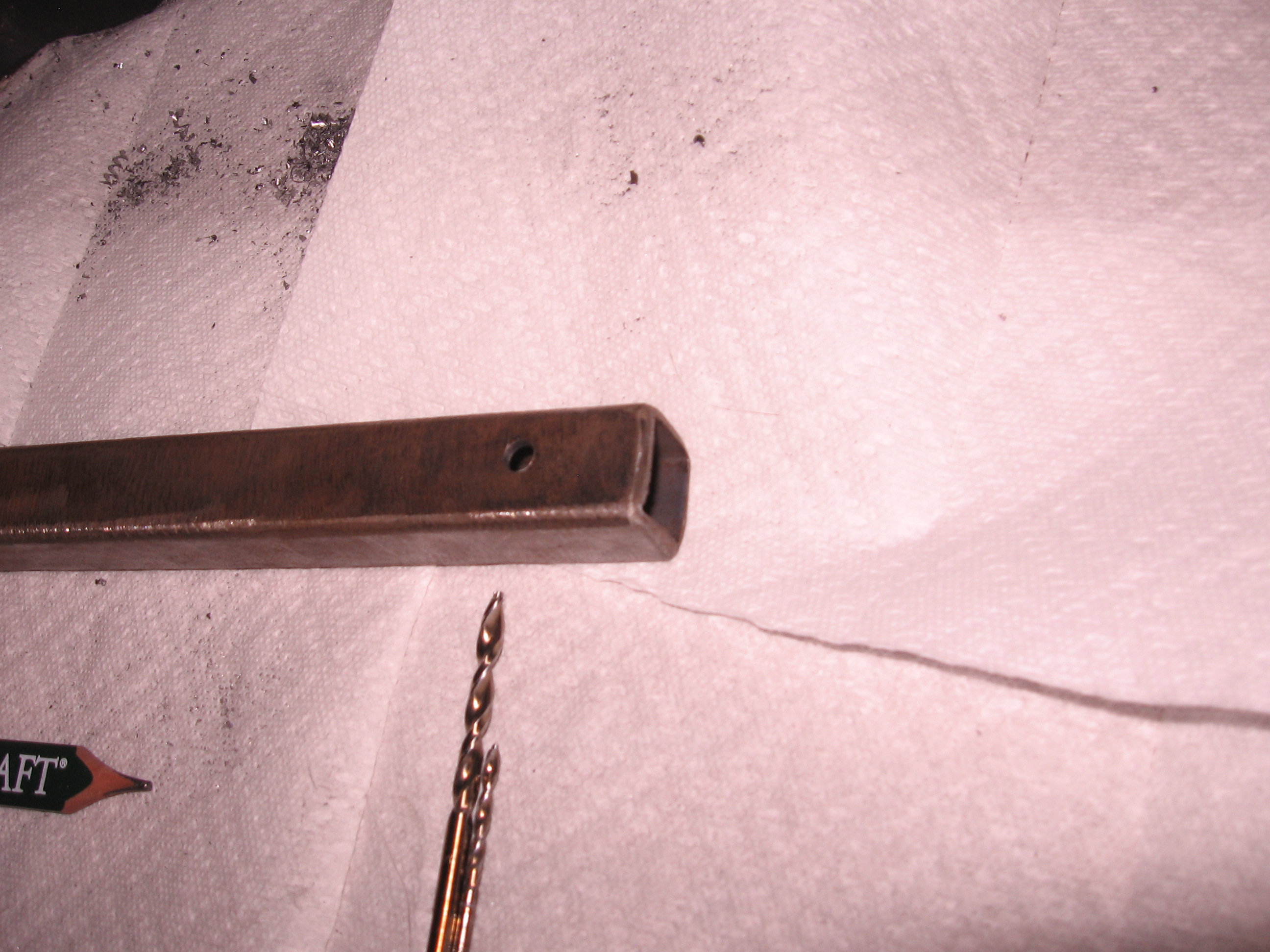

Initial guide hole drilled:

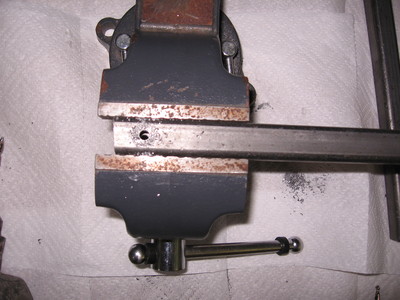

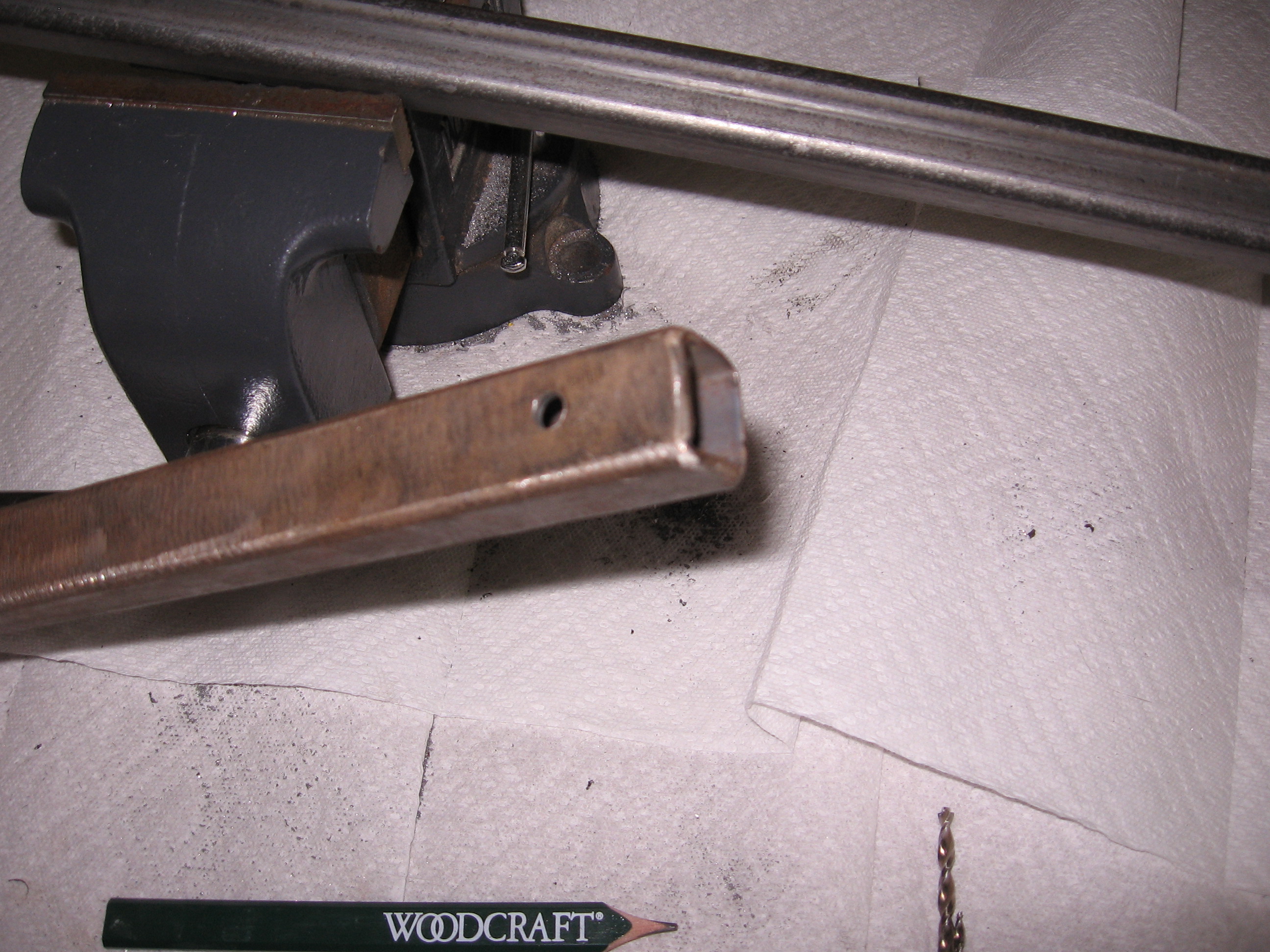

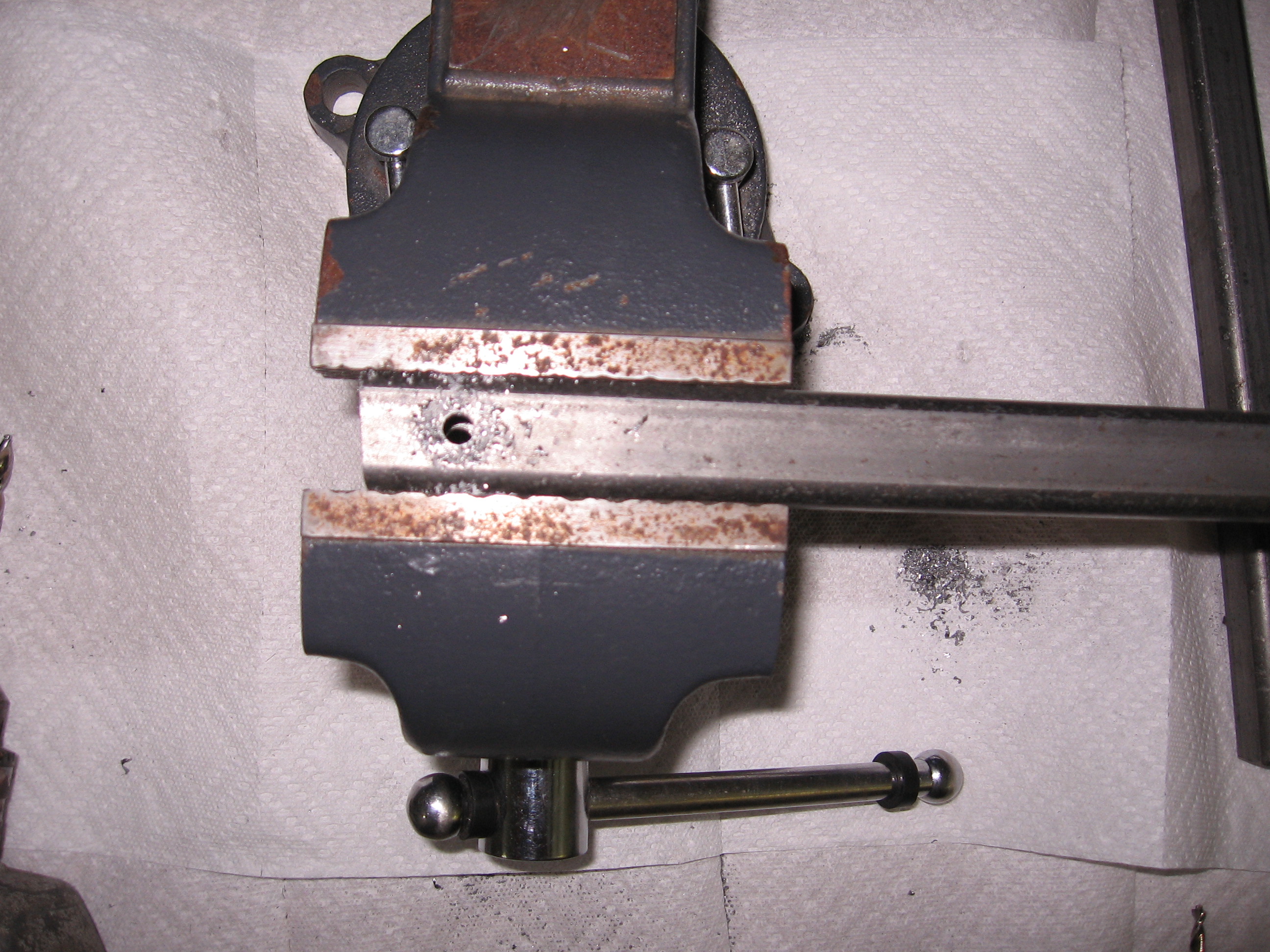

Final hole drilled:

Open eye bolts bolted in place. Use Closed drop forged eye bolts if spreader bar is to be used for any load bearing purposes such as suspension:

A dremel tool or angle grinder can be used to smoth off edges and corners to make them safer to work with:

Any questions?
